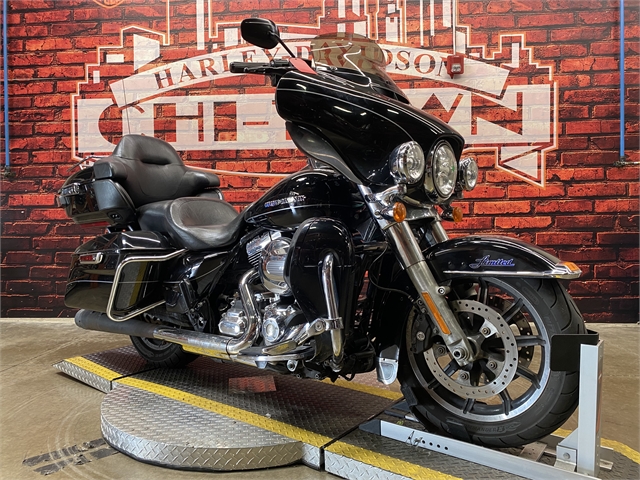

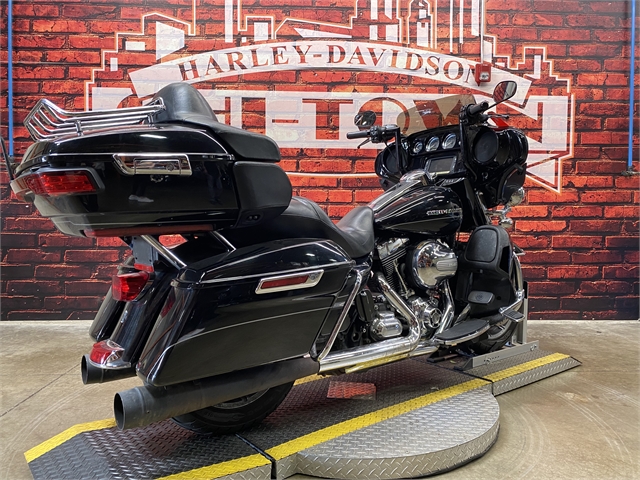

2015 Harley-Davidson Touring Ultra Limited Low

Stock #CC214A
Your Price: $20,488
Check Availability Hi, my name is and I'm interested in this 2015 Harley-Davidson Touring Ultra Limited Low . I'm in the area and you can reach me at or on my phone at .
  • Status:
    Pre-Owned
  • Vehicle:
    2015 Harley-Davidson Touring Ultra Limited Low
  • VIN:
    1HD1KKL39FB645046
  • Model Number:
    FLHTKL
  • Mileage:
    38,315 miles
  • Color:
    BLACK W/ PINSTRIPE
  • Stock Number:
    CC214A
  • Title:
    Clear
  • Location:
    Chi-Town Harley-Davidson
  • Warranty:
    As Is

AUDIO & COMMUNICATION

  • Brand Name:
    Boom!™ Box 6.5GT
  • Number Of Speakers:
    4

BRAKES

  • Brake Brand Name:
    Brembo®
  • Front Brake Type:
    Dual Hydraulic Disc
  • Rear Brake Type:
    Hydraulic Disc

CONVENIENCE

  • Adjustable:
    Yes
  • Engine Immobilizer Brand:
    Digitally Encoded Security System™ (DESS)
  • Heated Hand Grip Location:
    Driver

ENGINE

  • Bore (in):
    3.87
  • Bore (mm):
    98.3
  • CAN Liters Per Kilometer (Combined):
    5.6
  • Carburetion Type:
    Fuel Injected
  • Compression Ratio:
    10.0
  • Cooling:
    Air
  • Cylinders:
    2
  • Displacement (cc):
    1689.5
  • Displacement (ci):
    103.1
  • Engine Brand Name:
    Twin-Cooled™ High-Output Twin Cam 103™
  • Engine Stroke:
    4-Stroke
  • Engine Type:
    V Twin
  • Fuel Injector:
    Yes
  • Fuel Requirements:
    Premium
  • Fuel Type:
    Gas
  • Starter:
    Electric
  • Stroke (in):
    4.37
  • Stroke (mm):
    111
  • Torque (Ft Lbs):
    105.5
  • Torque (Nm):
    143
  • Torque RPM:
    3750
  • US Miles Per Gallon (Combined):
    42
  • Valve Configuration:
    OHV - Pushrod
  • Valves Per Cylinder:
    2
  • Valves:
    4

EXTERIOR

  • Chassis Protectors:
    Yes
  • Engine Case Guard:
    Yes
  • Floor Board Location:
    Driver and Passenger
  • Frame:
    Steel
  • Saddle Bag Guard:
    Yes
  • Side Cover:
    Yes
  • Stand Type:
    Kick
  • Tank Divider Material:
    Leather

GLASS

  • Folding:
    Yes
  • Height:
    Mid
  • Windshield Brand:
    Lexan®

INSTRUMENTATION

  • Fuel Level Warning Type:
    Gauge

LIGHTS

  • Type:
    Halogen

SEATS

  • Backrest Location:
    Passenger
  • Backrest Type:
    Fixed
  • Lumbar Adjustment:
    Yes
  • Number Of Seats:
    2
  • Seat Height (in):
    27
  • Seat Height (mm):
    685.8
  • Seat Location:
    Driver and Passenger
  • Seat Material:
    Leather
  • Seat Type:
    One-Piece

STEERING

  • Steering Control:
    Handlebar

STORAGE

  • Bag Liner Material:
    Vinyl
  • Location:
    Left and Right Side
  • Number Of Side Cases:
    2
  • Rear Rack Storage Material:
    Hard Vinyl
  • Rear Rack Storage Trim:
    Plain
  • Side Case Material:
    Vinyl

SUSPENSION

  • Air Adjustable:
    Yes
  • Front Adjustable Rebound Damping:
    Yes
  • Front Suspension Size (in):
    1.9
  • Front Suspension Size (mm):
    49
  • Front Suspension Type:
    Telescopic Fork
  • Number Rear Shock Absorbers:
    2
  • Rear Adjustable Rebound Damping:
    Yes
  • Rear Adjustable Shock / Spring Pre-Load:
    Yes
  • Rear Suspension Material:
    Steel
  • Rear Suspension Type:
    Twin Sided Swing Arm

TECHNICAL SPECIFICATIONS

  • Dry Weight (kg):
    390.5
  • Dry Weight (lbs):
    861
  • Engine Displacement to Weight (cc):
    1.96
  • Fuel Capacity (gal):
    6
  • Fuel Capacity (l):
    22.7
  • Ground Clearance (in):
    4.6
  • Ground Clearance (mm):
    116.8
  • Length (ft):
    8.53
  • Length (ft/ft):
    8
  • Length (ft/in):
    6.4
  • Length (in):
    102.4
  • Length (mm):
    2601
  • Storage Capacity (cuft):
    4.7
  • Storage Capacity (gal):
    30.2
  • Storage Capacity (l):
    133.1
  • Wet Weight (kg):
    406.4
  • Wet Weight (lbs):
    896
  • Wheelbase (in):
    64
  • Wheelbase (mm):
    1625.6

TRANSMISSION

  • Gear Ratio (1):
    9.593
  • Gear Ratio (2):
    6.65
  • Gear Ratio (3):
    4.938
  • Gear Ratio (4):
    4
  • Gear Ratio (5):
    3.407
  • Gear Ratio (6):
    2.875
  • Number Of Speeds:
    6
  • Primary Drive (Engine / Transmission):
    Chain
  • Primary Drive (Rear Wheel):
    Belt
  • Transmission Brand:
    Six-Speed Cruise Drive®
  • Transmission Type:
    Manual

WHEELS & TIRES

  • Chromed:
    Yes
  • Front Tire (Full Spec):
    Dunlop® Multi-Tread™ 130/80 R17 65H
  • Front Tire Aspect Ratio:
    80
  • Front Tire Speed Rating:
    65H
  • Front Tire Width:
    130
  • Front Wheel Diameter:
    17
  • Rear Tire (Full Spec):
    Dunlop® Multi-Tread™ 180/65 R16 81H
  • Rear Tire Aspect Ratio:
    65
  • Rear Tire Speed Rating:
    81H
  • Rear Tire Width:
    180
  • Rear Wheel Diameter:
    16
  • Tire Brand:
    Dunlop®
  • Wheels Composition:
    Aluminum
